If your Toyota’s automatic gearbox is slipping, shuddering, or holding gears at the wrong revs, you are facing one of two outcomes — a R3,000 to R18,000 targeted repair, or a R28,000 to R85,000 full replacement. The seven signs below are the ones we see most often in SA workshops, each pointing to a specific failure mode inside the AC60F, A750F, U151E or related Toyota auto box. Every sign includes a clear repair-vs-replace threshold so you can have a sensible conversation with your transmission shop instead of being talked into a R55,000 swap when a R12,000 valve body would have done the job.

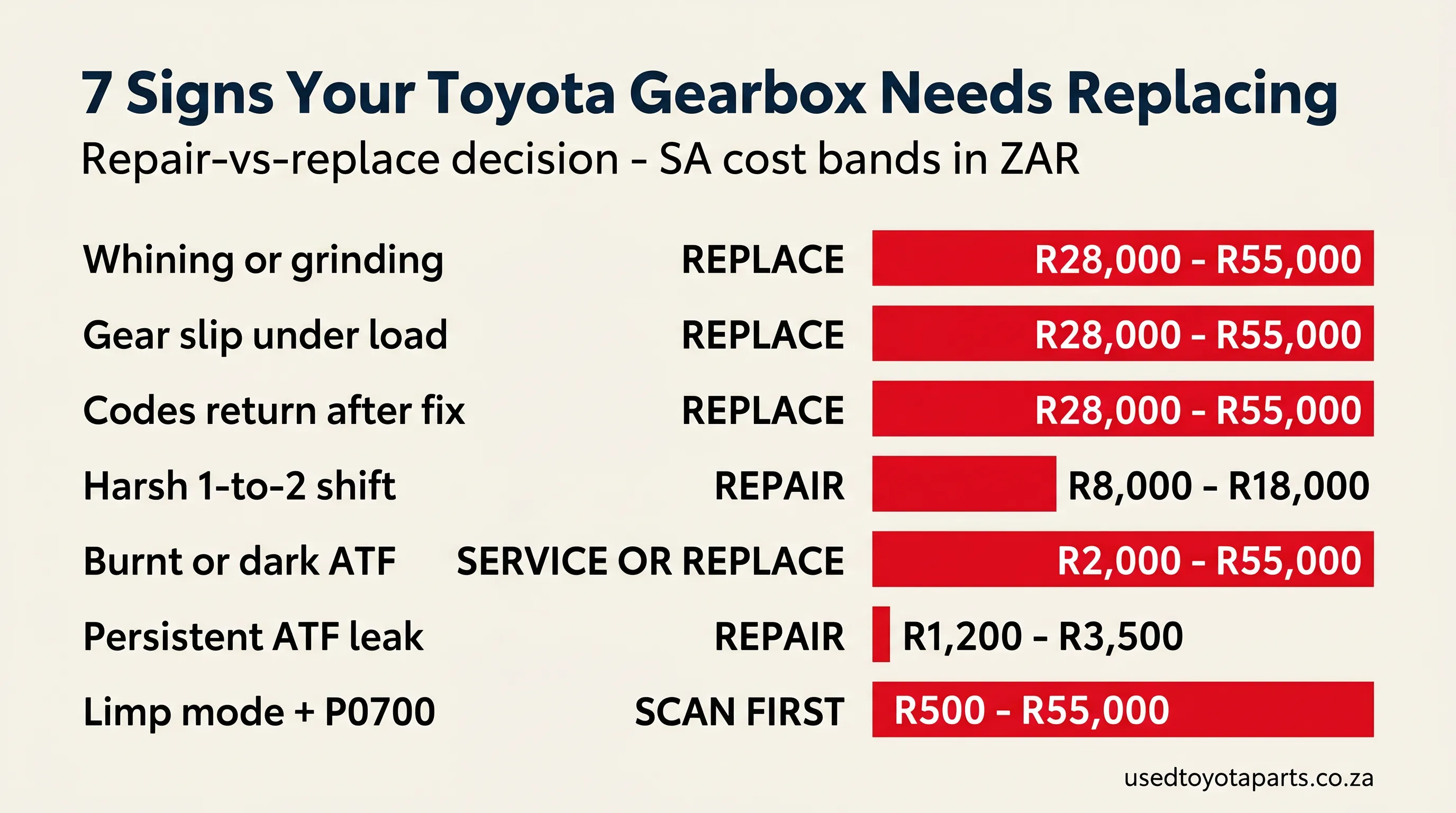

Key Takeaways
| Sign | What It Means | Repair or Replace? |
|---|---|---|
| 1. Gear slip under load | Worn clutch packs or low line pressure | Often replacement — clutch packs deep inside the unit |
| 2. Harsh / delayed 1-to-2 shifts | Classic AC60F valve body wear pattern | Usually repair — valve body rebuild R8,000 to R18,000 |
| 3. Burnt-smelling or dark ATF | Friction material in the fluid — clutch wear | Replacement if dark and burnt; service if dark only |
| 4. Limp mode and rpm cap | TCM safety mode, P0700 code family | Depends on root code — scan first, decide second |
| 5. Whining or grinding under load | Pump cavitation or planetary bearing failure | Replacement — pump and planetaries are sub-assembly jobs |
| 6. Persistent ATF leaks | Pan gasket, output seal, or cooler line | Almost always repair — under R3,500 if caught early |
| 7. TCM codes that keep returning | Final-stage — multiple failed sub-systems | Replacement — repair money will not stick |
| Decision Matrix | Symptom × failing unit = action | Use before paying any deposit |
A quick note on Toyota auto box lineage in South Africa. The units you are most likely diagnosing are the A340F (4-speed, older D4D Hilux and Surf), the A750F (5-speed, pre-2016 GD-6 Hilux and Fortuner), the AC60F (Aisin 6-speed, current GD-6 Hilux and Fortuner — the box with the harsh 1-to-2 shift complaint), the U151E (5-speed) and U660E (6-speed) in V6 Camry and Lexus ES, the U341E (older Corolla 4-speed), and the K310 / K313 / K115 CVT family in Corolla Quest, Yaris and Yaris Cross. Each sign behaves slightly differently depending on which unit you have — model-specific quirks are called out where they matter. Catching symptoms early is half the battle, which is why we’d encourage you to run the early-warning diagnostic checks before any of the harder failures set in.
Sign 1 — Gear Slip Under Load {#sign-1-gear-slip-under-load}
Owners describe this as “the engine revs but the bakkie doesn’t go”. Floor the throttle, the tacho climbs to 3,500-4,000 rpm, but acceleration arrives a beat late. On uphills the box drops a gear, the revs flare, then it grabs with a thump. Cold-start slip that disappears as ATF warms is early stage. Warm slip that worsens under load is end-stage.
Friction material on the clutch packs is worn enough that it cannot hold full engine torque at line pressure. The packs slip, heat builds, ATF contaminates, pressure drops further. Death spiral.
Symptoms: Engine revs without proportional acceleration on uphills, flare between gears, slip that worsens as the box warms.
What’s failing: Internal clutch packs (forward, direct, or overdrive depending on which gear slips), worn one-way sprag clutch, or low line pressure from a tired oil pump.
Repair-vs-replace threshold: Once clutch packs are slipping under load, you are inside the case. If the slip is gear-specific (e.g. only in 3rd) and ATF is still red, a targeted clutch-pack rebuild is viable at R14,000-R22,000. If multiple gears slip and ATF is dark, you are in full replacement territory — the planetaries and one-way clutches are usually gone too.
SA cost range: Targeted clutch-pack rebuild R14,000-R22,000 fitted. Reconditioned exchange unit R28,000-R55,000 for AC60F / A750F class. New OEM R80,000-R180,000 (rare).
Internal Clutch Packs — Hilux & Fortuner AC60F
The friction packs that wear out first when the gearbox starts to slip. Available as a full rebuild kit or as part of a reconditioned exchange unit. Quote includes Gemini Parts (JHB) and Caryota Spare (CPT) so you can compare.
Sign 2 — Harsh or Delayed 1-to-2 Shifts {#sign-2-harsh-or-delayed-1-to-2-shifts}
GD-6 Hilux and Fortuner owners running the AC60F 6-speed know this one. From a stop, the box hangs in 1st too long, then slams into 2nd with a thump that rocks the cab. It’s the single most common AC60F complaint we hear in SA workshops.
The root cause is wear in the valve body — the aluminium bores in which steel spool valves slide. Contaminated ATF carries fine debris through the body; over thousands of cycles the softer aluminium bore wears faster than the hardened-steel valves, clearance grows, pressure leaks past the lands, and the 1-to-2 shift comes too late (hang) or too hard (slam). Good news: the valve body is a serviceable sub-assembly. Bad news: most workshops quote a full replacement when a R12,000 rebuild would do.
Symptoms: Specific harsh shift between 1st and 2nd (not all shifts), 1-2 second delayed take-up from standstill, worse cold, often paired with shift-solenoid fault codes.
What’s failing: Valve body solenoid bores worn by contaminated ATF, sticking spool valves, occasionally a failing shift solenoid (SLT / S1 / S2 on Aisin nomenclature).
Repair-vs-replace threshold: This is the sign where you most often save money. If the harsh 1-to-2 is the only symptom, the box doesn’t slip under load, and ATF is still bright red — valve body wear without clutch pack damage = repair viable. If the box also slips, or the shift has been ignored for 30,000+ km, the clutch packs are usually gone and a reconditioned exchange unit makes more economic sense.
SA cost range: Valve body rebuild R8,000-R14,000 fitted. Recon-exchange valve body R12,000-R22,000 fitted. Early-stage ATF flush + filter R2,000-R3,500.
AC60F Valve Body — Hilux & Fortuner GD-6
The single most-replaced part on the AC60F. Rebuilt or recon-exchange units are available from both JHB and CPT yards. Often the difference between a R12,000 repair and a R55,000 full replacement.
Sign 3 — Burnt-Smelling or Dark ATF {#sign-3-burnt-smelling-or-dark-atf}
Pull the dipstick. Healthy Toyota ATF (WS, T-IV, or older Dexron variants) is bright red and translucent. End-stage fluid is dark brown to black, opaque, and smells like burnt clutch. The colour change is friction material from worn clutch packs plus chemical breakdown of the base oil from heat. Burnt smell without slip = service the fluid yesterday. Burnt smell with slip = too late for a service to fix it.
Symptoms: Dark brown or black ATF, distinct burnt smell, metal flake on a white-paper wipe, dense sludge instead of thin film when you drop the pan.
What’s failing: Friction material from worn clutches has shed into the ATF. The fluid has oxidised and lost its friction modifiers. The filter is usually clogged with debris.
Repair-vs-replace threshold: The most useful early-stage diagnostic, and the most ignored. If fluid is dark but not burnt-smelling and the gearbox still shifts properly, a flush + new filter + fresh OEM ATF often buys 50,000-100,000 km. If fluid is dark and burnt-smelling and the box slips or shifts harshly, the clutch packs are shedding — replacement is usually the cheaper outcome than rebuilding two sub-assemblies.
SA cost range: Full ATF flush + filter (caught early) R2,000-R3,500. Pan-drop + partial fluid R1,200-R2,200. Too late — recon exchange unit R28,000-R55,000 for AC60F class.
Sign 4 — Limp Mode and RPM Cap {#sign-4-limp-mode-and-rpm-cap}
Transmission warning light, gearbox locked in 3rd or 4th, revs capped at ~1,500 rpm. You can usually still limp to a workshop. This is the TCM’s protective fail-safe mode telling you continued normal operation would damage the unit further.
The triggering code is typically in the P0700 family (transmission control system general fault). P0700 by itself is not the diagnosis — it is the gateway code. There is a stored sub-code that names the actual fault. A TCM scan (not just the engine ECU) is mandatory before you spend a cent.
Symptoms: Transmission warning light, revs capped at ~1,500 rpm, gearbox stuck in one gear (usually 3rd or 4th), symptom may clear after restart then return, P0700-family code plus sub-codes stored.
What’s failing: Depends entirely on the sub-code. Could be a R600 speed sensor, a R3,500 shift solenoid, an open wiring connector, a failing TCM, or genuine internal damage detected via shift-time monitoring.
Repair-vs-replace threshold: The threshold here is the diagnostic, not the symptom. A workshop scan before any repair quote is non-negotiable — R500-R1,200 for the scan saves thousands. Sensor, solenoid, or wiring fault = repair R1,500-R8,000 and the gearbox is fine. Sub-codes pointing to internal damage (P0731-P0736 gear ratio, P0741 TC clutch stuck off, P0894 component slipping) plus slip or harsh shifts = replacement territory.
SA cost range: Diagnostic scan R500-R1,200. Sensor / solenoid repair R1,500-R8,000. Wiring repair R800-R3,500. Internal-damage replacement R28,000-R55,000 for AC60F / A750F fitted.
Sign 5 — Whining, Grinding, or Buzzing Under Load {#sign-5-whining-grinding-or-buzzing-under-load}
Mechanical noise that wasn’t there 5,000 km ago is rarely good news. A high-pitched whine rising with road speed (not engine speed) points to the oil pump. Grinding under load suggests a planetary gear set or bearings. A buzz that comes and goes with throttle is often the torque converter lockup clutch.
Sub-assembly noise inside an auto box is almost always end-stage. Auto sub-assemblies sit behind clutch drums and planetary carriers that come out as a stack. By the time you hear it from the driver’s seat, the contamination has already worked through the ATF and damaged the valve body and friction packs.
Symptoms: Whining rising with road speed (pump or planetary bearing), grinding under load quiet on overrun (planetary gear damage), buzz at 60-90 km/h light throttle (TC lockup), metallic grit on the magnet on a pan-drop.
What’s failing: Oil pump cavitation or vane wear, planetary gear set bearing failure, planetary tooth damage, or torque converter internal failure (turbine, stator, or lockup clutch).
Repair-vs-replace threshold: Almost never economical to repair in isolation. The pump and planetaries sit deep in the case and come out as a stack — the access labour is 80% of a full replacement. Threshold: if the noise is genuinely from the gearbox (not diff, exhaust heat-shield, or wheel bearing), replacement is the right call. A torque converter on its own can be replaced (R8,000-R18,000 fitted) but only if the rest of the box is still clean.
SA cost range: Stethoscope diagnostic R500-R1,200. Torque converter in isolation R8,000-R18,000 fitted. Full recon exchange R28,000-R55,000 for AC60F / A750F. Heavy-duty AB60F R45,000-R95,000 recon.
Torque Converter — A750F & AC60F
If the noise is the converter only and the rest of the gearbox is clean, a recon torque converter is the cheaper path. We stock units for A340F, A750F, AC60F and U151E/U660E from both JHB and CPT.
Sign 6 — Persistent ATF Leaks {#sign-6-persistent-atf-leaks}
Red fluid on the driveway is ATF, and any leak above a small weep needs fixing immediately. The risk isn’t the leak — it’s the low-fluid condition that follows. Low ATF means low line pressure, low pressure means slipping clutches, slipping means heat, and heat finishes the job in a week.
Three sources to check: the pan gasket (most common), the output shaft seal at the propshaft, and the ATF cooler lines running to the radiator-mounted cooler (chafe or corrosion). None are end-stage on their own.
Symptoms: Red fluid puddle under the gearbox after parking, dipstick reads low after a week, burnt-rubber smell from the engine bay (cooler line onto exhaust), ATF level needs topping up fortnightly.
What’s failing: Pan gasket (most common), output shaft seal (next, worse with a worn propshaft yoke), input shaft seal, cooler lines (chafe or corrosion), or case castings (rare, impact-related).
Repair-vs-replace threshold: The easiest sign on the list — almost always a repair, almost never a replacement trigger on its own. Catch the leak before the box slips and you are under R3,500. Ignore it for 5,000 km and you can find yourself buying a recon gearbox you didn’t need.
SA cost range: Pan gasket + ATF top-up R1,200-R2,500. Output shaft seal R1,800-R3,500. Cooler line R800-R2,200. ATF service after leak repair R2,000-R3,500.
Sign 7 — TCM Codes That Keep Returning {#sign-7-tcm-codes-that-keep-returning}
The final-stage sign. You’ve spent money on a valve body, sensor or flush. The car ran well for a week, maybe a month. Then the warning light came back. Same code. Or a new code in the same family. The gearbox is telling you the damage is too widespread for targeted repairs to stick.
When multiple TCM codes return after a rebuild attempt, contamination from the original failure has worked through every sub-assembly. The replaced valve body is being damaged by the same debris that killed the first one. The new solenoid sticks in the same dirty fluid. Accept the gearbox is gone and budget for replacement.
Symptoms: TCM codes returning within days or weeks of clearing, multiple codes where there used to be one, new codes in the same family (one solenoid replaced, another fails), performance issues worse after each repair.
What’s failing: Cumulative contamination across the valve body, clutch packs, oil pump, and solenoids. The original root cause has damaged enough sub-systems that no single repair can stick.
Repair-vs-replace threshold: This is the unambiguous replacement sign. Two targeted repairs inside 12 months with codes coming back = stop spending on parts and source a reconditioned exchange unit. The labour on the third repair attempt equals the labour to fit a recon unit, and the recon comes with a 90-day to 12-month warranty that your repaired unit does not.
SA cost range: Diagnostic scan R500-R1,200. Recon exchange fitted R28,000-R55,000 for AC60F / A750F. Heavy-duty AB60F R45,000-R95,000. New OEM R80,000-R250,000 (rare).
The Repair-vs-Replace Decision Matrix {#the-repair-vs-replace-decision-matrix}
Use this matrix once you know which sign you have and which sub-assembly is implicated. Read the symptom row across to the failing unit column — the cell tells you the action.
| Symptom \ Failing Unit | Valve Body Only | Torque Converter Only | Clutch Packs | Planetary / Pump | Multiple Sub-Systems |
|---|---|---|---|---|---|
| Harsh 1-to-2 shift | Repair (R8k-R18k) | Investigate further | Replace | Replace | Replace |
| Slip under load | Repair viable if early | Investigate | Replace (R28k-R55k) | Replace | Replace |
| Limp mode + P0700 | Repair if sub-code points here | Repair if P0741 only | Replace | Replace | Replace |
| Whining / grinding | Investigate further | Repair (R8k-R18k) | Replace | Replace (no isolated repair) | Replace |
| Burnt ATF | Service + monitor | Service + monitor | Replace | Replace | Replace |
| Persistent leak | Repair (R1k-R3.5k) | Repair | Repair the leak first | Repair the leak first | Address leak + scan |
| Codes returning after fix | Replace | Replace | Replace | Replace | Replace (unambiguous) |
The pattern: single-sub-system failures caught early are usually repairable. Multi-sub-system failures, or any sign appearing after a previous repair attempt, push you into replacement territory regardless of which symptom is loudest.
When the Gearbox Is Gone — Your Replacement Options {#when-the-gearbox-is-gone---your-replacement-options}
Once the matrix puts you in replacement territory, SA buyers have three realistic options.
Used scrap-yard units are cheapest — R1,500 for a Tazz manual up to R30,000 for a Land Cruiser auto. Best for older vehicles where residual value doesn’t justify recon pricing. Warranty is 7-30 days. The risk is mileage and internal condition — claims are rarely verifiable without a bench test.
Reconditioned units add R3,000-R8,000 over used and come with a 90-day to 12-month warranty from the better SA shops. Best for Hilux, Fortuner, Quantum and Land Cruiser owners keeping the vehicle long term. Full breakdown in our guide on reconditioned vs used gearbox options.
New OEM units run 3-5x recon price, special-order from Japan with 2-6 week lead times. Best only for in-warranty vehicles, finance-encumbered cars where the bank specifies genuine parts, or rare units (CVT, AB60F) where the used market is too thin.
For model-specific numbers, our breakdown of current Toyota gearbox prices in SA gives used / recon / new OEM bands for Corolla, Fortuner, Quantum and the rest. When you’re ready to source a unit, browse our Toyota gearbox stock — the quote form goes to both Gemini Parts (JHB) and Caryota Spare (CPT) at once.
FAQ
How do I know if my Toyota gearbox is failing or just needs a service? The dipstick check is the most useful test. Bright red translucent ATF with no burnt smell and no slip under load = a fluid service buys you time. Dark, burnt-smelling fluid plus any of the seven signs above means friction material from worn clutches is in the fluid and a service alone won’t fix it. A R500-R1,200 TCM scan confirms whether codes implicate the gearbox or a peripheral sensor.
Can a harsh 1-to-2 shift on a Hilux AC60F be fixed without replacing the gearbox? Usually yes. It’s a classic valve body wear pattern. Caught early — before the clutch packs start slipping — a rebuild or recon-exchange valve body fixes it for R8,000-R18,000 fitted. Ignored for 30,000 km plus, the clutch packs are usually gone and economics tilt to a reconditioned exchange unit.
What does P0700 actually mean on a Toyota auto? P0700 is a “transmission control system general fault” gateway code — it switches on the warning light but doesn’t name the fault. A sub-code stored in the TCM names the real problem. Don’t accept any quote based on P0700 alone — insist on a TCM scan that pulls the sub-codes. The sub-code tells you whether you face a R1,500 sensor repair or a R45,000 replacement.
How long can I drive with a slipping automatic gearbox? Not long. Slip generates heat, heat degrades ATF, degraded ATF reduces line pressure, lower pressure causes more slip. We’ve seen AC60F units go from intermittent slip to non-driveable in under 5,000 km when owners try to “wait it out”. Stop driving, get a TCM scan, decide repair-vs-replace before the slip contaminates sub-assemblies that are still healthy.
Is it cheaper to repair or replace a Toyota automatic gearbox? Depends on which sub-system failed. A valve body or solenoid issue caught early is R8,000-R18,000 to repair vs R28,000-R55,000 to replace — repair wins. Clutch pack damage, planetary failure, or multi-sub-system failure after a previous repair puts you in replacement territory where “repair” labour equals fitting a recon unit, without the warranty.
Will a reconditioned Toyota gearbox last as long as the original? A properly reconditioned unit from an RMI-accredited shop — replaced clutch packs, new bearings, rebuilt valve body, bench-tested before fitting — typically lasts 150,000-250,000 km in SA conditions. Warranty terms (90 days to 12 months unlimited km) tell you what the reconditioner believes the unit is good for. A recon unit with a 7-day warranty is closer to a used unit than a true recon.
