Your Toyota’s fuel filter is the single cheapest component standing between clean combustion and a catastrophically expensive injector rebuild. If you drive a diesel Hilux, Fortuner, or Quantum, this is especially critical — I’ve spent weeks digging through manufacturer data, fleet maintenance records, and international reliability studies, and the numbers are stark: over 60% of all diesel fuel injection system failures trace back to fuel contamination, the exact problem a healthy fuel filter is designed to prevent. A replacement filter costs R250-R600. A set of failed injectors costs R8,500-R14,000. The maths writes itself.
Key Takeaways
| Topic | Key Finding | Jump To |
|---|---|---|
| What a Fuel Filter Does | Traps particles as fine as 2-5 microns, plus separates water in diesel systems | Section 1 |
| Diesel vs Petrol Filters | Diesel filters work 5x harder — finer filtration, water separation, higher pressures | Section 2 |
| Change Intervals | Diesel: 20,000-40,000 km. Petrol: 60,000-80,000 km or lifetime | Section 3 |
| Clogged Filter Symptoms | Power loss under load, hard starting, rough idle, engine surging | Section 4 |
| Ignoring It Costs Thousands | Clogged filter destroys injectors (R8,500-R14,000) and fuel pumps (R6,000-R12,000) | Section 5 |
| Replacement Costs | R350-R1,200 total for filter + labour depending on model | Section 6 |
| Fuel Quality in SA | 70+ stations caught selling contaminated diesel — your filter is the last line of defence | Section 7 |
What Does a Fuel Filter Do
At its most basic level, a fuel filter prevents dirt, rust, paint flakes, and other contaminants from reaching your engine’s fuel injectors. But that description massively undersells what modern fuel filters actually do, particularly on diesel engines.
Fuel in your tank is never perfectly clean. It picks up microscopic particles during refining, transport, storage in underground tanks at petrol stations, and even from corrosion inside your own vehicle’s fuel tank and lines. These particles are measured in microns — for reference, a human hair is roughly 70 microns in diameter.
How Fine Is the Filtration?
Modern diesel fuel filters operate at astonishing precision:
- Primary filter stage: Catches particles down to 10-30 microns
- Secondary filter stage: Catches particles down to 2-5 microns
- Petrol engine filters: Typically rated at 10-20 microns for EFI systems
For Perspective
A common rail diesel injector has spray holes as thin as a human hair — some as narrow as 110 microns in diameter. Even a 10-micron particle that slips through a degraded filter can score these openings and permanently alter the spray pattern, causing incomplete combustion and power loss.
On diesel engines, the fuel filter also serves as a water separator. This is a dedicated function that petrol filters simply don’t have. The filter housing contains a hydrophobic membrane that prevents water from passing through, collecting it in a drain bowl at the bottom. Water in diesel causes corrosion of fuel system components, microbiological growth (diesel bug), and in extreme cases, catastrophic injector failure because water doesn’t compress like fuel does.
If you’re looking for Hilux fuel injection components or Fortuner engine parts, make sure your filter is sorted first — there’s no point fitting new injectors into a contaminated fuel system.

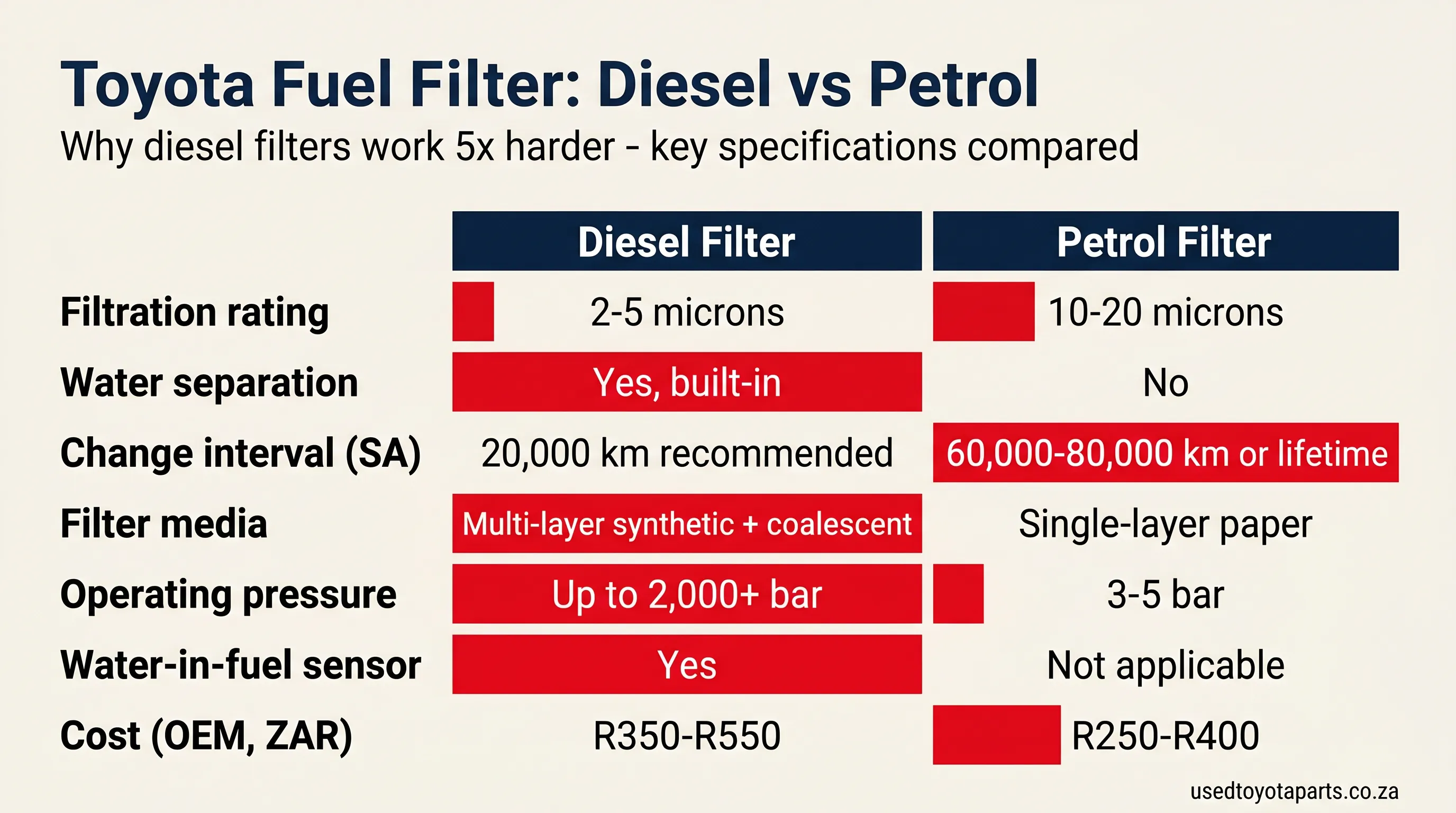

Diesel vs Petrol Fuel Filters
This is where Toyota owners need to pay attention, because diesel and petrol fuel filters are fundamentally different components doing very different jobs at vastly different service intervals.
The Key Differences
| Feature | Diesel Fuel Filter | Petrol Fuel Filter |
|---|---|---|
| Filtration rating | 2-5 microns (secondary stage) | 10-20 microns |
| Water separation | Yes — built-in water separator with drain valve | No |
| Typical change interval | 20,000-40,000 km | 60,000-80,000 km or lifetime |
| Filter media | Multi-layer synthetic with coalescent element | Single-layer paper or synthetic |
| Operating pressure | Up to 2,000+ bar (common rail) | 3-5 bar (port injection) |
| Water drain sensor | Yes — dashboard warning light when full | Not applicable |
Why Diesel Filters Work Harder
Diesel fuel is inherently dirtier than petrol. It contains more naturally occurring contaminants, absorbs more moisture from the atmosphere, and is more susceptible to biological contamination. On top of this, modern common rail diesel systems operate at injection pressures exceeding 2,000 bar — meaning any contaminant that reaches the injectors does so with tremendous force behind it.
Critical for Diesel Owners
Your diesel fuel filter has a water-in-fuel warning light on the dashboard. When this light comes on, you need to drain the water separator immediately. Driving with water in the fuel system can destroy injectors within a single tank of contaminated diesel.
Petrol Filters: Often Overlooked Because They’re Hidden
Many modern Toyota petrol models — including post-2015 Corolla variants — use an in-tank fuel filter that’s integrated with the fuel pump module. Toyota designs these to last the life of the vehicle in markets with good fuel quality. However, in regions where fuel quality varies, even “lifetime” filters can degrade prematurely. If your petrol Toyota is struggling with fuel delivery symptoms past 150,000 km, the in-tank filter is worth investigating.
Toyota Fuel Filter Change Intervals
Here’s what I’ve found after cross-referencing Toyota owner’s manuals, dealership service schedules, and fleet maintenance data from international sources.
Recommended Intervals by Engine Type
| Toyota Model | Engine | Fuel | Filter Interval |
|---|---|---|---|
| Hilux 2.8 GD-6 | 1GD-FTV | Diesel | 40,000 km (Toyota), 20,000 km (recommended for SA) |
| Hilux 2.4 GD-6 | 2GD-FTV | Diesel | 40,000 km (Toyota), 20,000 km (recommended for SA) |
| Fortuner 2.8 GD-6 | 1GD-FTV | Diesel | 40,000 km (Toyota), 20,000 km (recommended for SA) |
| Fortuner 2.4 GD-6 | 2GD-FTV | Diesel | 40,000 km (Toyota), 20,000 km (recommended for SA) |
| Quantum 2.5 D-4D | 2KD-FTV | Diesel | 40,000 km (Toyota), 20,000 km (recommended for SA) |
| Land Cruiser 4.5 V8 | 1VD-FTV | Diesel | 40,000 km (Toyota), 20,000 km (recommended for SA) |
| Corolla 1.8 | 2ZR-FE | Petrol | In-tank, lifetime (check at 150,000 km) |
| Hilux 2.7 VVTi | 2TR-FE | Petrol | 80,000 km or in-tank lifetime |
My Recommendation for South African Diesel Owners
Toyota’s official interval of 40,000 km assumes ideal fuel quality. In South Africa, I strongly recommend halving that to 20,000 km — or roughly every second service. The cost difference between a R350 filter and a R12,000 injector rebuild makes this the cheapest insurance you can buy. Fleet operators I’ve spoken to who switched to 15,000 km intervals reported 40-60% lower fuel system repair costs.
When to Change Even Sooner
Reduce your interval to 10,000-15,000 km if any of the following apply:
- You regularly fill up at smaller independent fuel stations
- You operate in dusty environments (farms, construction sites, mining areas)
- Your vehicle sits idle for extended periods (fuel degrades and attracts moisture)
- You’ve recently had a water-in-fuel warning light
- You tow heavy loads frequently (higher fuel throughput means more contaminants processed)
Signs of a Clogged Fuel Filter
These symptoms develop gradually, which is why so many owners miss them until real damage has occurred. Here’s what to watch for, roughly in order of severity:
Early Warning Signs
- Slight hesitation under hard acceleration — The engine stumbles briefly when you floor it, especially when overtaking or pulling away uphill
- Longer cranking time on cold starts — Takes an extra second or two to fire up, particularly in cold mornings
- Subtle loss of top-end power — Your Hilux or Fortuner doesn’t feel quite as strong at highway speeds
Moderate Symptoms
- Engine surging or bucking at steady speed — The engine feels like it’s receiving fuel in bursts rather than a steady flow
- Rough idling — Uneven engine note, slight vibration through the steering wheel at traffic lights
- Increased fuel consumption — A 10-15% drop in fuel economy without any other obvious cause
Severe Symptoms (Change the Filter Immediately)
- Engine stalling under load — Cuts out when climbing a hill or towing
- Check engine light — Fuel pressure or lean mixture codes stored in the ECU
- Visible smoke under acceleration — Black smoke indicates incomplete combustion from insufficient fuel delivery
- Engine won’t start at all — Complete fuel starvation from a fully blocked filter
Industry Data
According to fleet maintenance research, a restricted fuel filter can reduce fuel delivery by up to 50% before the engine actually stalls. This means your engine could be running significantly lean — and damaging itself — long before you notice obvious driveability problems.
If you’re experiencing any combination of these symptoms, a fuel filter replacement should be your first diagnostic step. It’s the cheapest and easiest fuel system component to replace, and it eliminates the most common cause before you spend money on more expensive diagnosis.
What Happens If You Ignore a Clogged Fuel Filter
This is where the real cost conversation happens. A clogged fuel filter doesn’t just cause poor running — it actively destroys other components in a predictable cascade of damage.
The Damage Cascade
Stage 1 — Fuel Pump Strain (0-3 months overdue)
Your fuel pump has to work significantly harder to push fuel through a restricted filter. The high-pressure fuel pump on a common rail diesel is lubricated and cooled by the fuel flowing through it. Restrict that flow, and the pump overheats, wears prematurely, and eventually fails.
Stage 2 — Contaminant Bypass (3-6 months overdue)
As the filter clogs further, the pressure differential across the filter media increases. Eventually, the pump generates enough pressure to force microscopic contaminants straight through the saturated filter media. These particles — some as small as 5-10 microns — now have a direct path to your injectors.
Stage 3 — Injector Damage (6+ months overdue)
Abrasive particles act like sandblasters inside the precision-machined injector nozzles. Spray patterns become irregular, fuel atomisation deteriorates, and combustion efficiency drops. Once scored, injector nozzles cannot be repaired to original specification — they must be replaced or reconditioned.
The Real Cost of Skipping a Filter Change
A R350 fuel filter replaced on schedule protects components worth R20,000-R40,000. Here’s what injector and pump failure actually costs:
- Injector reconditioning (set of 4): R8,500 - R14,000
- New OEM injector (single): R3,500 - R5,000
- High-pressure fuel pump replacement: R6,000 - R12,000
- Complete fuel system rebuild: R25,000 - R40,000
These are not theoretical numbers. I see these repair bills regularly from Hilux and Fortuner owners who skipped filter services to save a few hundred rand.
The 72% Statistic
Fleet maintenance data consistently shows that 72% of all diesel fuel injection system failures are caused by water and fuel contamination — both problems that a functioning fuel filter with water separator is specifically designed to prevent. This isn’t a parts-marketing claim; it comes from fleet operators tracking failure modes across thousands of vehicles.
If your injectors have already failed, we carry replacement fuel injection components for Hilux and engine parts for Fortuner models from 2005 onwards. But prevention is always cheaper than cure.
Fuel Filter Replacement Costs
One of the things I appreciate about fuel filter maintenance is how affordable it is relative to the damage it prevents. Here’s what you should expect to pay in South Africa.
Cost by Toyota Model
| Model | OEM Filter (ZAR) | Aftermarket Filter (ZAR) | Labour (ZAR) | Total (OEM + Labour) |
|---|---|---|---|---|
| Hilux 2.8/2.4 GD-6 | R350 - R550 | R180 - R300 | R200 - R400 | R550 - R950 |
| Fortuner 2.8/2.4 GD-6 | R350 - R550 | R180 - R300 | R200 - R400 | R550 - R950 |
| Quantum 2.5 D-4D | R300 - R500 | R160 - R280 | R200 - R350 | R500 - R850 |
| Land Cruiser 4.5 V8 | R450 - R650 | R250 - R400 | R300 - R500 | R750 - R1,150 |
| Corolla (in-tank) | R600 - R900 | R350 - R550 | R500 - R800 | R1,100 - R1,700 |
| Hilux 2.7 VVTi (petrol) | R250 - R400 | R120 - R200 | R150 - R300 | R400 - R700 |
Cost Comparison: Prevention vs Repair
- Fuel filter change (every 20,000 km): ~R700 per service
- 10 filter changes over 200,000 km: ~R7,000 total
- Single injector set rebuild: R8,500 - R14,000
- Fuel pump + injectors combined: R15,000 - R26,000
Over your vehicle’s lifetime, disciplined filter maintenance costs less than a single major fuel system repair.
DIY or Workshop?
Diesel fuel filters on most Toyota models are externally mounted and accessible from the engine bay — the Hilux and Fortuner D4D and GD-6 filters sit on the driver’s side of the engine compartment. It’s a 20-30 minute job for someone comfortable with basic tools. The key steps are: disconnect the sensor plug, release the fuel line clips, unscrew the filter housing cap, swap the filter element, and reassemble in reverse. You’ll need to prime the system and clear any air from the fuel lines before starting.
For the Quantum, access is slightly more restricted, but the procedure is fundamentally the same.
DIY Tip
After fitting a new diesel fuel filter, you’ll need to bleed the air from the fuel system. Most Toyota diesels have a hand primer pump on the filter housing — pump it 20-30 times until you feel firm resistance. Then crank the engine. It may take a few extra seconds to start on the first attempt as residual air clears from the lines.
Why Fuel Quality Matters
This section is specifically for South African Toyota owners, because fuel quality here adds a dimension of risk that owners in Europe, Japan, or Australia simply don’t face to the same degree.
The Contamination Problem
In early 2024, South Africa’s Minister of Mineral Resources and Energy confirmed that at least 70 filling stations were caught selling diesel diluted with illuminating paraffin. This isn’t a one-off incident — it’s an ongoing problem driven by the tax differential between diesel and paraffin. Unscrupulous operators blend the two fuels to increase their profit margin, and your engine pays the price.
Diluted diesel has:
- Lower lubricity — Accelerates wear on fuel pump and injector components
- Higher water content — Overwhelms the fuel filter’s water separator capacity
- Different combustion properties — Causes incomplete combustion, carbon buildup, and increased exhaust soot
- More particulate contamination — Paraffin is stored and transported with less quality control than diesel
Real-World Impact
Major automakers including Toyota, Ford, and Volkswagen have publicly stated that South Africa’s fuel quality standards prevent them from bringing certain vehicle models to local roads. The country’s fuel specifications lag behind European and Australian standards, particularly for sulphur content and particulate limits. Your fuel filter is compensating for this gap every kilometre you drive.
How to Protect Yourself
- Fill up at reputable branded stations — Major fuel companies (Shell, BP, Engen, Sasol) have more rigorous quality control than independent operators
- Avoid filling up when a tanker is delivering — Deliveries stir up sediment that has settled at the bottom of underground storage tanks
- Keep your tank above quarter-full — A near-empty tank draws fuel from the very bottom where sediment and water accumulate
- Inspect your filter at every service — Ask your mechanic to show you the old filter. A black, heavily contaminated filter after only 20,000 km tells you something about where you’re filling up
- Consider a pre-filter kit — Aftermarket secondary filter systems (R2,500-R4,500 installed) add an extra stage of filtration before fuel reaches your main filter, doubling your protection
What About Petrol Quality?
Petrol quality issues in South Africa are less severe than diesel, but not non-existent. The main concern for petrol Toyota owners is ethanol content and water contamination at the retail level. If you drive a Corolla or petrol Hilux, standard service intervals for the fuel filter (or in-tank pump/filter module) should be adequate — but pay attention to any sudden changes in fuel economy or driveability after filling up at an unfamiliar station.
The Bottom Line
Your fuel filter is the final barrier between contaminated fuel and precision-engineered components worth tens of thousands of rand. In a market where fuel quality cannot be guaranteed at every pump, maintaining your filter on a shortened interval is not overcautious — it’s financially rational. A R350 filter every 20,000 km is the cheapest insurance policy your Toyota will ever have.
If you need replacement fuel filters, injectors, fuel pumps, or any other fuel system component for your Toyota, browse our parts catalogues for Hilux, Fortuner, Quantum, and Corolla — we stock OEM and quality aftermarket parts for all model years.
